Oil Storage Tanks
Oil Tank suitable for the storage of home heating oil at above ground storage installations at agricultural, commercial, domestic, industrial and institutional premises. Satisfies all applicable oil storage tank requirements. All our Oil Storage Tanks are made to the highest specifications, combine innovative design with the most up to date manufacturing process.
For pricing and a full range of our Tanks contact us on 045 871771.

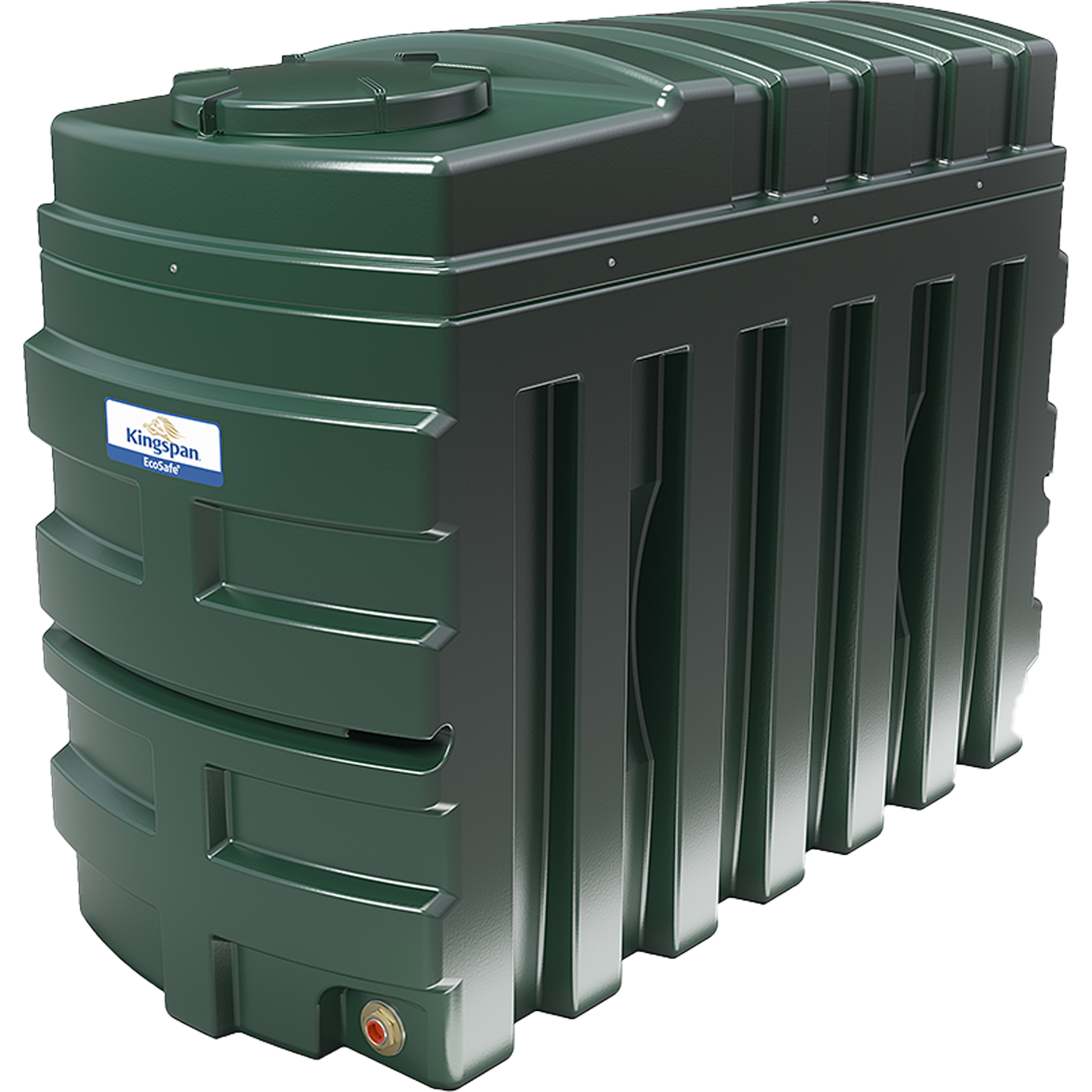

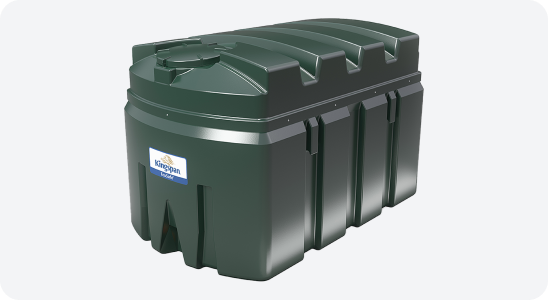

Ecosafe Bunded Tanks
Premium double-skin construction with built-in environmental protection and advanced safety features.
CODE: ES1225
| Capacity | 1225 Ltrs / 270 Gals |
| Length | 2050 mm |
| Width | 900 mm |
| Height | 1515 mm |
CODE: ES2500
| Capacity | 2500 Ltrs / 550 Gals |
| Length | 2450 mm |
| Width | 1425 mm |
| Height | 1450 mm |
Features
 |
Low maintenance – no rust and no painting |
 |
The double skin construction ensures environmental protection and safeguards against leaks and ground contamination |
 |
Remote oil level monitor reduces the possibility of running out of oil (sudden drop alarm and low level alert) |
 |
SpillStop overfill prevention device shuts off the point once fuel reaches 95% of the tank volume |
 |
Increased security due to lockable lid protecting your fuel |
 |
Bottom outlet, unique gate valve and filter supplied as standard |
Watchman Alarm Tank Pack
for Ecosafe range
All Ecosafe tanks come complete with a WatchmanAlarm tank pack. Greatly reduces installation time.
Tank Pack consists of:
- 01. WatchmanAlarm Transmitter
- 02. WatchmanAlarm Receiver
- 03. PTFE Tape
- 04. Heldite
- 05. Heldite Applicator
- 06. Gate Valve and Filter

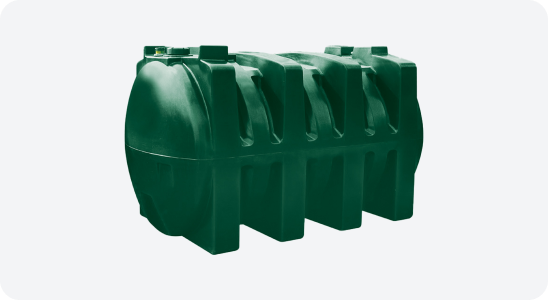

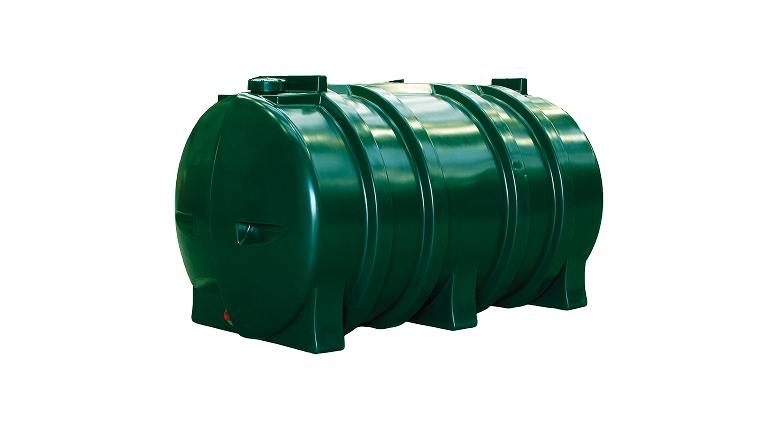

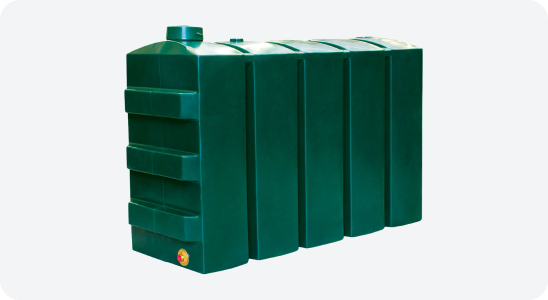

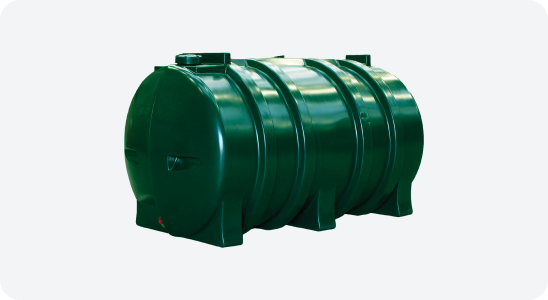

Single Skin Oil Tanks
Specifically designed to suit Domestic Applications – Capacities from 1000-2500 Litres
CODE: R900
| Capacity | 900 Ltrs / 200 Gals |
| Length | 1505 mm |
| Width | 695 mm |
| Height | 1200 mm |
CODE: R1200
| Capacity | 1200 Ltrs / 264 Gals |
| Length | 1810 mm |
| Width | 700 mm |
| Height | 1220 mm |
CODE: H1360
| Capacity | 1360 Ltrs / 300 Gals |
| Length | 1950 mm |
| Width | 1080 mm |
| Height | 1080 mm |
CODE: H2500
| Capacity | 2500 Ltrs / 550 Gals |
| Length | 2235 mm |
| Width | 1250 mm |
| Height | 1310 mm |
FuelMaster®
Diesel Storage & Dispensing Solutions
Secure Fuel Storage and Dispensing Systems – Capacities from 1225-9000 litres
Standard Equipment:
- PIUSI Panther 56 Pump
- 4m 3/4″ Delivery Hose
- PIUSI A60 automatic nozzle
- Mechanical Clock Gauge for Level Display
- Filter with Blanking Cap (10μm Metal Filter)
- Filling through 2″ BSP Coupling
- Spillstop mechanical overfill protection
Management and Monitoring Systems
The FuelMaster range offers two monitoring options – the Watchman Sonic Plus and UniWatchmanRX allowing you to continually monitor your diesel levels ensuring you never run out.
There are two unique integrated management solutions – the MC Box and the Titan Access Management System. Both options offer control over dispensed and stored diesel from the moment of delivery to the time of use (including additional information on individual user consumption, leak detection, level display and much more)
Need Help Choosing the Right Tank?
Our team can help you select the perfect oil storage solution for your home or business
Call 045 871771Get a Quote
